参数项目（中文） | Parameter Item（English） | 参数数值 |

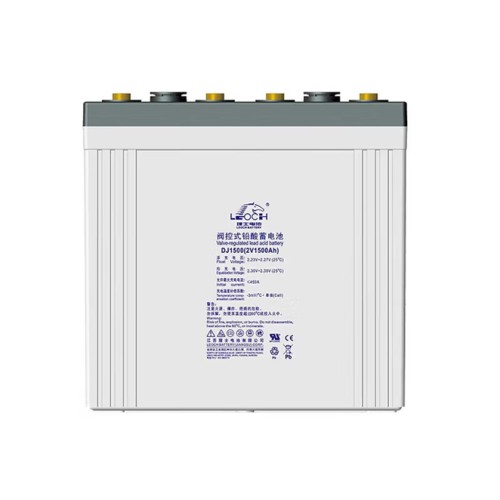

产品型号 | Product Model | DJ1500 |
额定电压 | Rated Voltage | 2V |
标称容量 | Nominal Capacity | 1500Ah（10HR，1.80V/cell，25℃） |
长 | Length | 403±3mm |
宽 | Width | 354±3mm |
高 | Height | 339±3mm |
总高 | Total Height | 360±3mm |
重量 | Weight | 92.0±0.5Kg |
端子 | Terminal | M10铜镀银大电流端子，导电稳定、耐氧化 |
外壳材料 | Shell Material | 阻燃ABS工程塑料，防火抗冲击、耐腐蚀 |
额定容量 | Rated Capacity | 1500Ah（标准工况） |
5S最大放电电流 | 5S Maximum Discharge Current | 9500A（瞬时大电流，安全可控） |
内阻 | Internal Resistance | ≤0.28mΩ（25℃常温标准） |
运行温度 | Operating Temperature | -20℃～+55℃ |
推荐温度 | Recommended Temperature | 20℃～28℃（最佳储能工况） |
最大充电电流 | Maximum Charging Current | 300A |
充电电压 | Charging Voltage | 浮充2.23V/单体；均充2.35V/单体（25℃） |
温度对容量影响 | Temperature Effect on Capacity | 温度每降低10℃，容量衰减约6%；高温环境容量小幅提升，超55℃易加速老化 |
自放电 | Self-discharge | 25℃常温下月自放电率≤3%，静置存储6个月仍可正常使用 |
恒流放电表(A)25℃ Constant Current Discharge | ||||||||||||
F.V/Time | 30min | 45min | 1h | 1. 5h | 2h | 3h | 4h | 5h | 6h | 8h | 10h | 20h |
1.85V/cell | 909.5 | 719. 1 | 652.9 | 498.8 | 404.0 | 307.4 | 260.2 | 219.6 | 190.6 | 154.9 | 129.5 | 69.4 |
1.80V/cell | 1044.6 | 802.2 | 755.6 | 590.0 | 475.3 | 375.0 | 303.3 | 255.8 | 221. 1 | 179.4 | 150.0 | 79.2 |
1.75V/cell | 1092.9 | 836.2 | 826.4 | 609.9 | 489.9 | 380.9 | 310.9 | 261.6 | 225.7 | 182.6 | 151.8 | 80.2 |
1.70V/cell | 1163.5 | 859.7 | 833.6 | 630.5 | 505.5 | 392.0 | 318.8 | 267.6 | 230.6 | 185.9 | 154.2 | 81.2 |
1.67V/cell | 1195.7 | 867.9 | 840.5 | 641.9 | 514.0 | 397.9 | 323.2 | 270.9 | 233.3 | 187.8 | 155.5 | 81.8 |
1.60V/cell | 1217.9 | 886.5 | 844.8 | 670.5 | 535.4 | 407.5 | 333.9 | 279.2 | 239.9 | 192.3 | 158.8 | 83.3 |
恒功率放电表(W/ pc) 25℃ Constant Power Discharge | ||||||||||||
F.V/Time | 30min | 45min | 1h | 1. 5h | 2h | 3h | 4h | 5h | 6h | 8h | 10h | 20h |
1.85V/cell | 1686.2 | 1337.6 | 1224. 1 | 938. 1 | 761.8 | 584.5 | 501.2 | 423.7 | 368.4 | 300.0 | 251.2 | 135.3 |
1.80V/cell | 1920. 1 | 1481.0 | 1406.8 | 1103.3 | 891.6 | 710.2 | 582. 1 | 492.0 | 426. 1 | 346.6 | 290.4 | 154.2 |
1.75V/cell | 1991.6 | 1531.8 | 1519.4 | 1133.4 | 913.8 | 718. 1 | 594.4 | 501.6 | 433.9 | 352.2 | 293.5 | 156. 1 |
1.70V/cell | 2100.5 | 1562.2 | 1521.9 | 1164.6 | 938.0 | 735.6 | 607.3 | 511.5 | 442. 1 | 357.7 | 297.6 | 157.9 |
1.67V/cell | 2137.5 | 1569. 1 | 1527.0 | 1181.0 | 950.2 | 744.6 | 614.2 | 516.8 | 446.5 | 361.0 | 299.9 | 159.0 |
1.60V/cell | 2158.2 | 1585.3 | 1520. 1 | 1223.4 | 982.5 | 758.2 | 631.4 | 530.3 | 457.2 | 368.4 | 305.4 | 161.7 |
